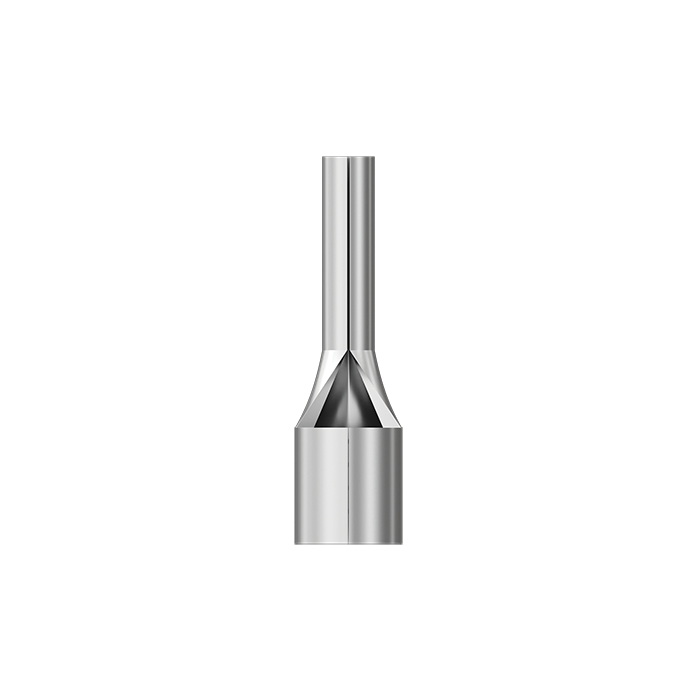

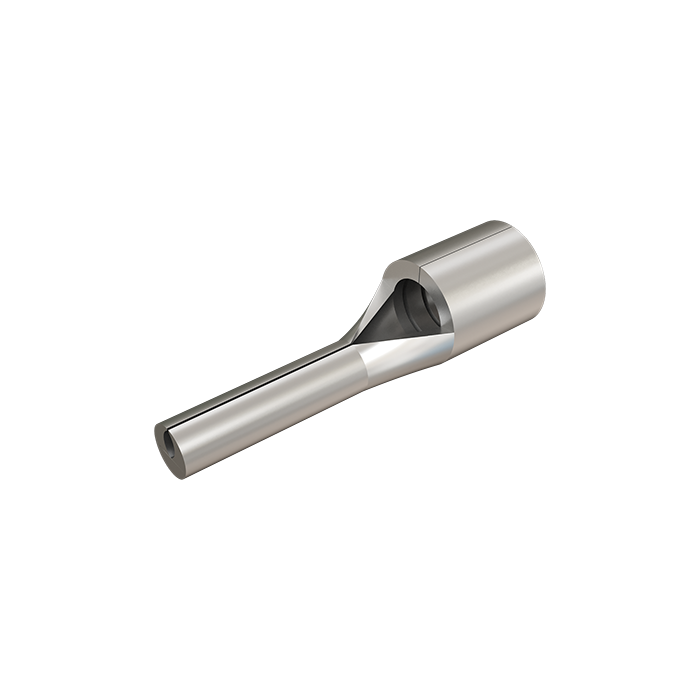

Non-Insulated Pin Type Terminals
We manufacture and supply Non-Insulated Pin Type Terminals for secure and efficient electrical connections in industrial and electrical applications.
| CAT. NO | CABLE mm2 | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | F | E | B | G+H | J | TYPE | ||
| ZP-0 | 1.0 | 1.2 | 2.8 | 1.7 | 0.8 | – | 5 | 10 | 17 | I |
| ZP-9 | 1.5 | 1.6 | 3.2 | 1.9 | 0.8 | – | 5 | 10 | 17 | I |
| ZP-35 | 1.5 | 1.6 | 3.2 | 3.1 | 0.8 | – | 5 | 10 | 17 | II |
| ZP-38 | 1.5 | 1.8 | 3.2 | 1.9 | 0.8 | – | 5 | 10 | 17 | I |
| ZP-1 | 2.5 | 2.3 | 3.9 | 3.1 | 0.8 | – | 5 | 10 | 17 | II |
| ZP-2 | 2.5 | 2.3 | 3.9 | 2.7 | 0.8 | – | 5 | 10 | 17 | I |
| ZP-3 | 4.0 | 2.9 | 4.9 | 5.1 | 1.0 | – | 6 | 10 | 20 | I |
| ZP-4 | 4.0 | 3.6 | 5.6 | 2.7 | 1.0 | – | 6 | 10 | 20 | II |
| ZP-5 | 6.0 | 3.6 | 5.6 | 2.7 | 1.0 | – | 6 | 10 | 20 | I |
| ZP-6 | 6.0 | 4.0 | 6.0 | 4.3 | 1.0 | – | 6 | 10 | 20 | II |
| ZP-7 | 10.0 | 4.5 | 6.7 | 5.5 | 1 | 2.4 | 8 | 12 | 22 | III |
| ZP-8 | 16.0 | 5.8 | 8.2 | 5.5 | 1.2 | 2.6 | 10 | 13 | 26 | III |
| ZP-10 | 2.5 | 2.4 | 4.0 | 1.7 | 0.8 | 1.7 | 4.2 | 8.4 | 14.4 | I |
| ZP-11 | 2.5 | 2.4 | 4.0 | 3.1 | 0.8 | – | 4.2 | 8.4 | 14.4 | II |
| ZP-12 | 4.0 | 2.8 | 4.4 | 1.7 | 0.8 | 1.7 | 4.2 | 8.4 | 14.4 | I |
| ZP-13 | 4.0 | 2.8 | 4.4 | 3.1 | 0.8 | – | 4.2 | 8.4 | 14.4 | II |
| ZP-14 | 6.0 | 3.5 | 5.5 | 2.6 | 2.6 | 2.6 | 6.4 | 12.4 | 20.4 | I |
| ZP-15 | 6.0 | 3.5 | 5.5 | 5.1 | – | – | 6.4 | 12.4 | 20.4 | II |
| ZP-16 | 10.0 | 4.4 | 6.4 | 2.6 | 2.6 | – | 6.4 | 12.4 | 20.4 | I |
| ZP-125 | 25.0 | 7.5 | 11.1 | 7.2 | 3.8 | 3.8 | 11.0 | 15 | 33.0 | III |
| ZP-135 | 35.0 | 9.0 | 12.6 | 8.2 | 3.8 | 3.8 | 12.0 | 15 | 33.0 | III |
| ZP-150 | 50.0 | 10.5 | 14.1 | 9.0 | 3.8 | 3.8 | 16.0 | 17 | 41.0 | III |
| ZP-170 | 70.0 | 12.0 | 16.0 | 10.0 | 4.1 | 4.1 | 16.0 | 16 | 46.0 | III |
| ZP-195 | 95.0 | 13.5 | 18.1 | 10.0 | 4.8 | 4.8 | 20.0 | 20 | 51.0 | III |
| ZP-54 | 0.75 | 0.9 | 1.9 | 3.2 | – | – | 5.0 | 10 | 17.0 | II |
